IDEAVISION – Vacumount Kit (ExDemo)

SKU : S1-IV4185.EX.D

3.650,00

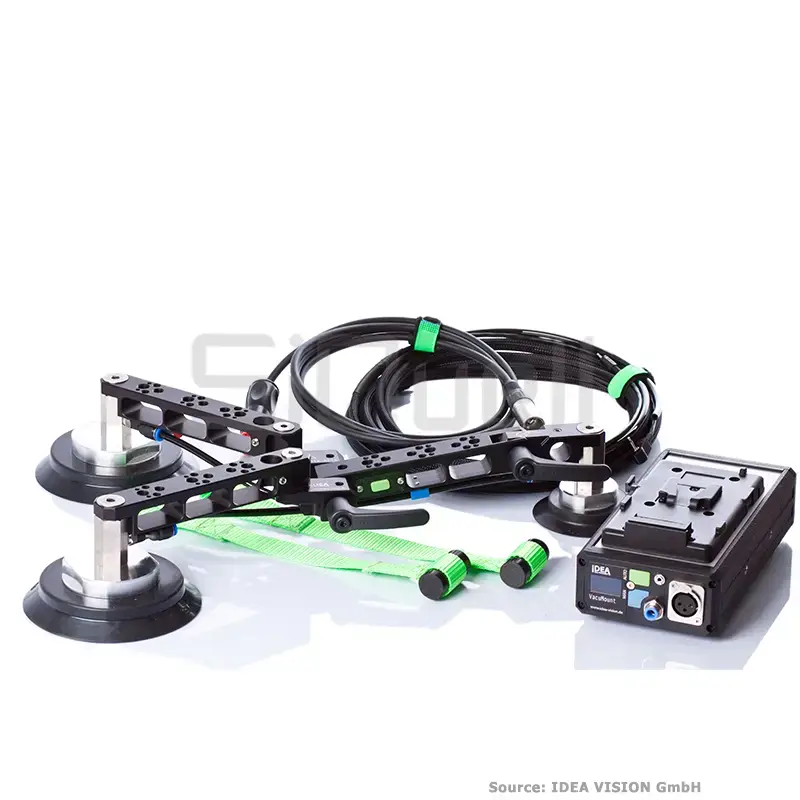

A lightweight, resistant, and ultra-flexible vacuum mounting platform that delivers a multitude of rigging possibilities with ultimate functionality. The VacuMount system is ideal for mounting cameras, gimbals, camera heads, lights or other accessories on all smooth surfaces such as windows, cars, walls etc.!

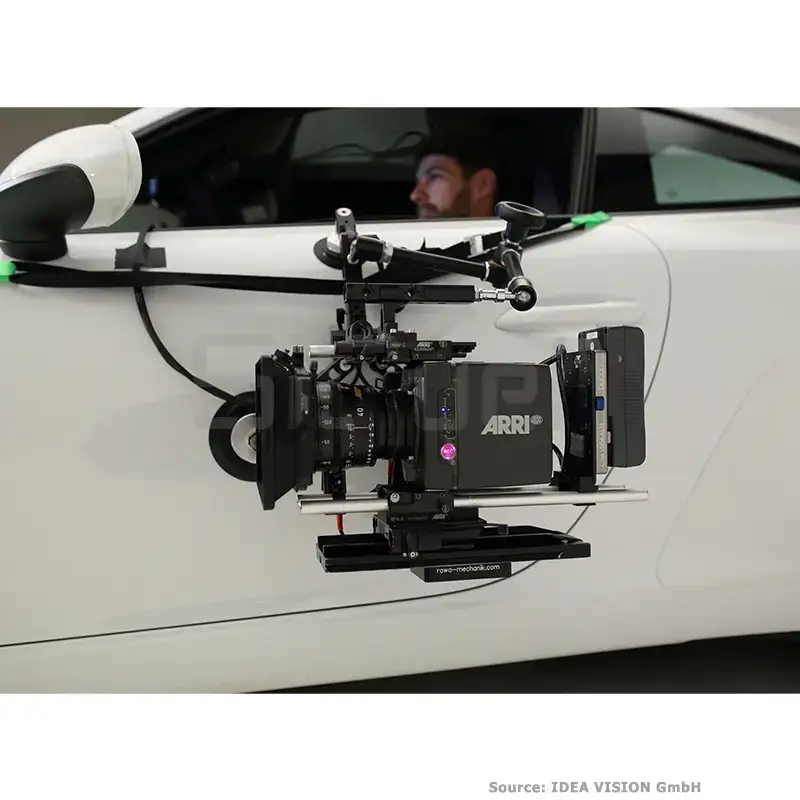

With the VacuMount System you can take shots whith the camera directed at the driver from the front of a car (off the hood), or from the side of a car – the System covers these applications entirely. The C3 can be used as a single mounting system, or as addition with further C3, or the C1 VacuMounts.

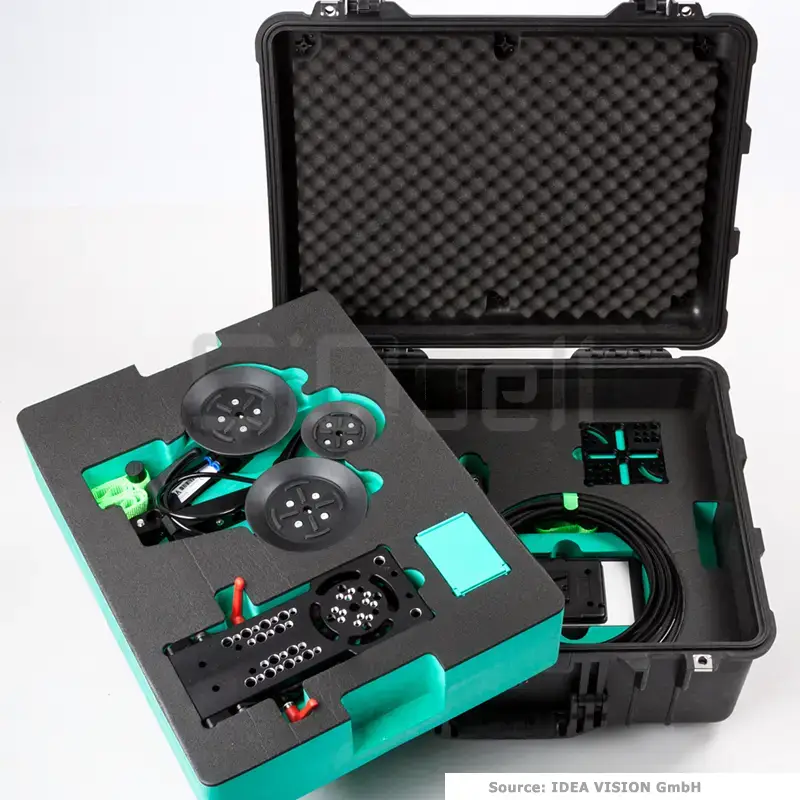

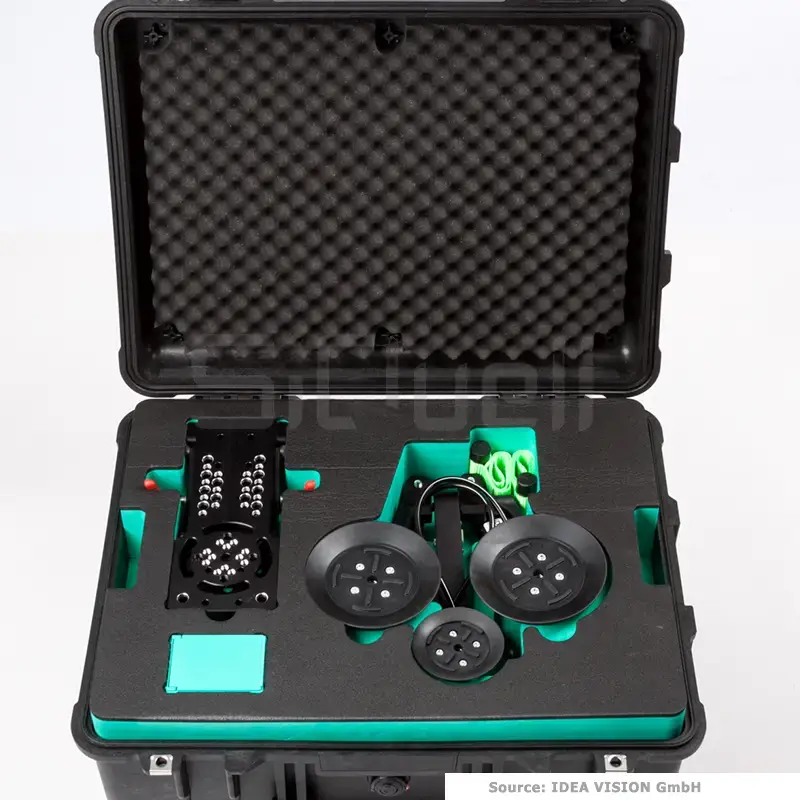

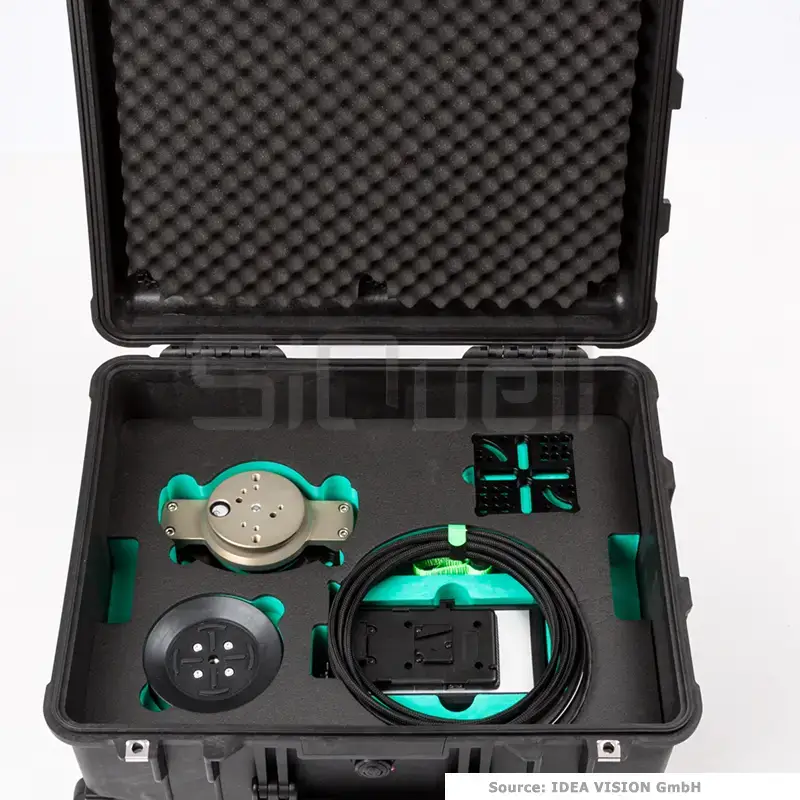

VacuMount System kit:

  • 1x C3 structure
  • 1x C1 structure
  • 1x Bowl 100mm
  • 1x Tilt plate
  • 1x Cheese plate
  • 1x Case/Inlay
  • 1x Vacuum Pump System
  • 1x power supply appr. 2m
  • 1x cable air supply appr. 5m
  • 1x cable air supply appr. 3m
  • 3x Tension belt / Hook kit
  • 1/4″ screw to attach directly to lens mounts
  • Works with Morrissey 15mm LWS lens support
  • Vertical travel of 33mm
  • Lightweight & low profile
  • Knurled knob for use with gloves and in tight spaces
International Shipment

Your orders are shipped seamlessly between countries

30 Days Warranty

You have the right to return your orders within 30 days.

Secure Payment

Your payments are secure with our private security network.

Description

System Features

  • activ vacuum rigging system
  • the three suction pads can carry a maximum payload of up to 100 kg | 220 lbs, depending on how the VacuMount is used
  • the VacuMount is designed in such a way that it can hold the camera, gimbal and lights directly, or mounted with a wedge/tilt plate.
  • the assembly of the VacuMount is installed within seconds
  • amazing flexibility for all purposes due to it´s unique joint design
  • easy one man handling due to its lightweight and user optimized design
  • the vacuum pump system can be connected from 11V to 30V DV, directly from a car (12V), or any standard V-Mount Battery or D-TAP
  • the VacuMount can be rigged and used perfectly on narrow or small surfaces
  • due to articulated links the mounting angle can also be used around the corner
  • permanent automatic pressure and power control

System Specification

Dimensions Vacuum Pump System:

  • Length: 184 mm
  • Width: 106 mm
  • Hight: 58 mm

Payload:

max. payloads Depending on how it is used up to 100 kg /220 lbs.

C3 System appr.: 3 kg



Electrical Data:

  • Input Range: 11V – 30V DC
  • Current A:7 A(max)
  • Consumption: 5W (max)
  • Watt Hour: 0,96W/h (AUTOMATIC MODE)
  • Current Hour: 80mA/h (AUTOMATIC MODE)
  • car onboard (12V) or any standard Camera Battery over 11V

Information System:

Micro-controlled unit  with permanent pressure control. Loss of pressure will be readjusted immediately.

  • Permanent power control
  • Light and sound signals
  • Digital display



Additional Data:

  • Low noise: 65 dB
  • Ambient temperature: -10°C to +80°C
  • Certifications & Approvals:
  • CE, RoHS, IP54 (eletctronics), IP62 (structure)
